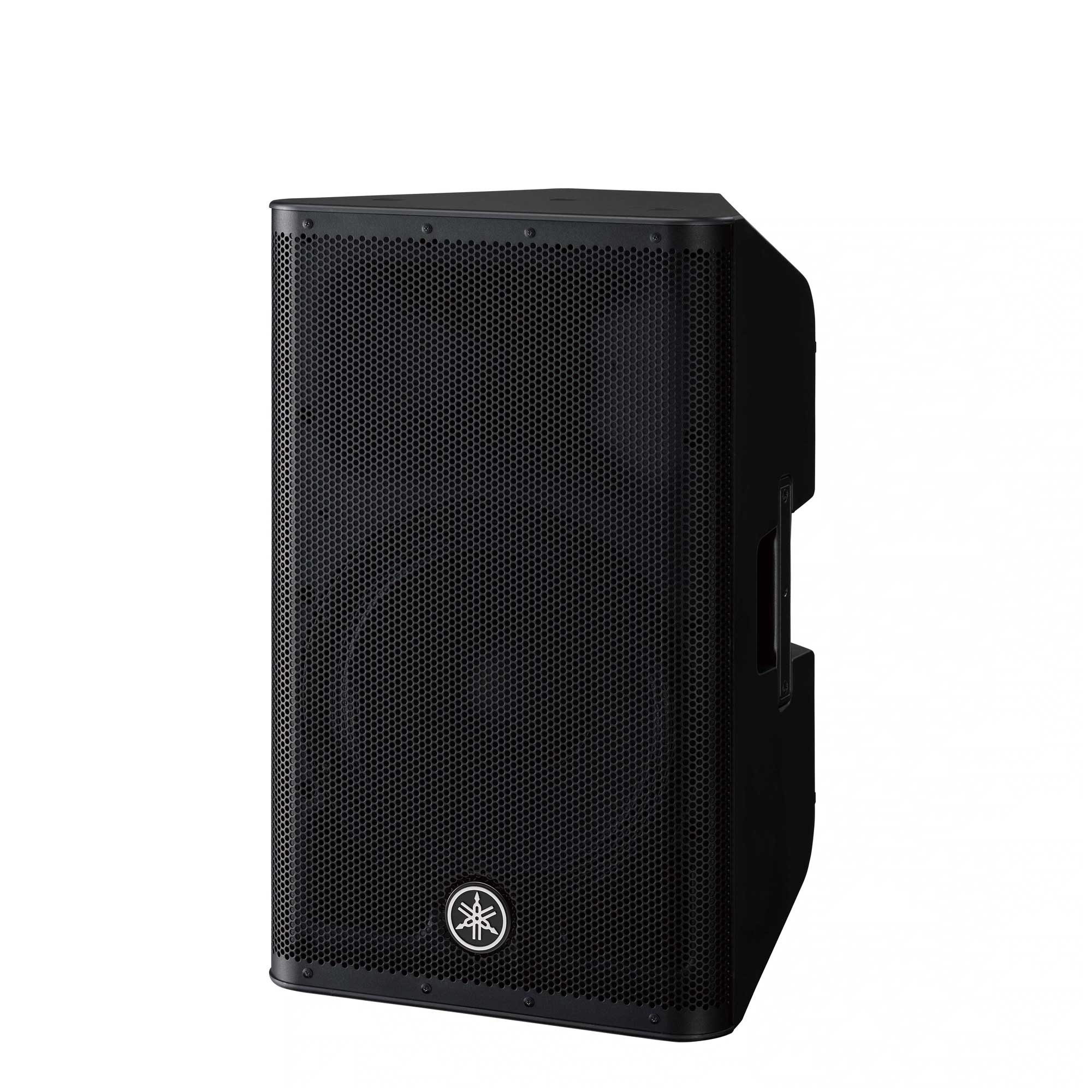

Yamaha DXR12mkII 12" 2-Way Powered Loudspeaker

The DXR12mkII is an extremely high-power loudspeaker that is capable of producing a maximum SPL of 134dB with its impressive 1100W of power. It is the perfect solution for live sound applications that demand wide bandwidth and extremely high-resolution sound.

  • Speaker Type: 12" 2-way, Bi-amp powered speaker, Bass-reflex type
  • Frequency Range (-10dB): 52Hz - 20kHz
  • Nominal Coverage: H - 90°, V - 60°
  • Components: LF - Diameter:12" cone, Voice Coil:2.5", Magnet:Ferrite, HF - Diaphragm:1.75", Type: 1" throat compression driver, Magnet:Neodymium
  • Crossover: FIR-X tuning™ (linear phase FIR filter)
  • Output Power: Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
  • Maximum Output Level (1m; on axis): 134dB SPL
  • I/O Connectors: INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1 ), LINK OUT: XLR x 1
  • Processors: D-CONTOUR: FOH/MAIN, MONITOR, OFF
  • Power Requirements: 100V - 240V, 50Hz/60 Hz
  • Power Consumption: 110W
  • Flying and Mounting Hardware: Top x2, Rear x1 (Fits for M10 x 18mm eyebolts)
  • Pole Socket: 35mm with 2-way features (0 or 7 degrees)
  • Dimensions: W - 362mm (14 2/8"), H - 601mm (23 5/8"), D - 350mm (13 6/8")
  • Net Weight: 18.6kg (41.0lbs)
  • Accessories: UB-DXR12 (U-bracket)
  • Others: Material: ABS (Matte Finish, Black)
